CyFlow Counter

The CyFlow Counter is a fully equipped compact and robust desktop flow cytometer with green laser excitation and three optical parameters (SSC and 2 fluorescence channels). It performs both fluorescence analysis and True Volumetric Absolute cell Counting (TVAC) without the need for reference beads or a haematology counter. It represents a reliable solution with variable sample throughput for local heath care centers as well as district and regional hospitals.

The CyFlow Counter is simple to install and does not need any additional setup time. With the CD4/CD4% easy count kit reagents, blood sample preparation and incubation occur outside the device, which increases the sample throughput. Results are presented within three minutes as diagrams and as counting results in cells/µl blood sample or percentage.

Features

Orderinformation

CyFlow Counter – Instruments & Reagents

CY-S-3023 | CyFlow Counter
05-8401 | CD4 easy count kit (100 Tests)
05-8405 | CD4% easy count kit (100 Tests)
05-4026 | Count Check Beads green (50 QC Tests)

Flow System:

  • Volumetric Counting based on computer-controlled precision peristaltic pump for transporting a defined volume of sample
  • Computer-controlled precision syringe pump for sample preparation

Software:

  • Windows™ Software
  • Operated and controlled by CyFlow Counter
  • Display of progress and remaining time

Dimensions:

  • L 360mm x W 370mm x H 270mm
Technical Specifications
Light Sources: 30mW, 532nm green solid state laser
Flow System:

Synthetic quartz flow cuvette (channel dimensions: 250µm x 350µm) for laminar sample flow
True Volumetric Absolute Counting (TVAC) based on precise counting and fluid volume measurement
Computer controlled precision syringe pump for contamination-free sample transport and volumetric absolute counting
Pump speed continuously adjustable from 0-20 µl/sec.
Built in vacuum pump (200 mbar) for sheath fluid

Software:

Windows™ Software
Diagram with 4-decade logarithmic scale
Trigger on fluorescence parameter

Dimensions:

325mm x W 330mm x H 265mm

Contacts
You have a question and would like to get in touch with our experts? We look forward to receiving your enquiry.

Sysmex West and Central Africa Ltd.

148A Marvel House, Giffard Road

Burma Camp – Trade Fair Road

East Cantonments, Accra Ghana

+233 3027 988 67

Documents

Product documents

Safety data sheets

Regulatory Documents

Regulatory documents, such as Instructions for Use, can be accessed with a valid My Sysmex login:

Go to My Sysmex

Explore more

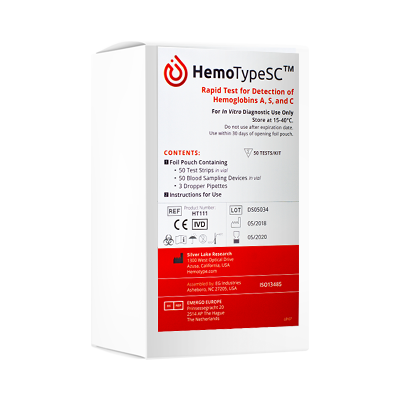

HemoTypeSC™
